起源の場所: | 広東省、中国(本土) |
ブランド名: | PAC/ODM |
証明: | UL, ROHS, IEC62133, UN38.3, MSDS |
モデル番号: | 18650-3s1p 11.1v 3500mAh |
最小注文数量: | 200PCS |
---|---|
価格: | Negotiable |
パッケージの詳細: | 標準的な輸出カートン |
受渡し時間: | サンプルのための15-20日、大量生産のための25-35日 |
支払条件: | T/T |
供給の能力: | 5,000pcs/day |
タイプ: | リチウム イオン電池 | 細胞モデル: | 決め付けられた18650細胞3500mAh |
---|---|---|---|
わずかな電圧: | 11.1V | わずかな容量: | 3500mAh |
適用: | antiepidemicプロダクト、懐中電燈 | 周期: | 500回 |
サイズ: | 73*55.5*19mm | コネクタ: | Molex/JSTはまたはカスタマイズされて、コネクターのすべての主要なタイプを受け入れます |
保証: | 1年 | 重量: | 140gについて |
ハイライト: | 3500mAhリチウム イオン電池,11.1vリチウム イオン電池,懐中電燈3s1p電池のパック |

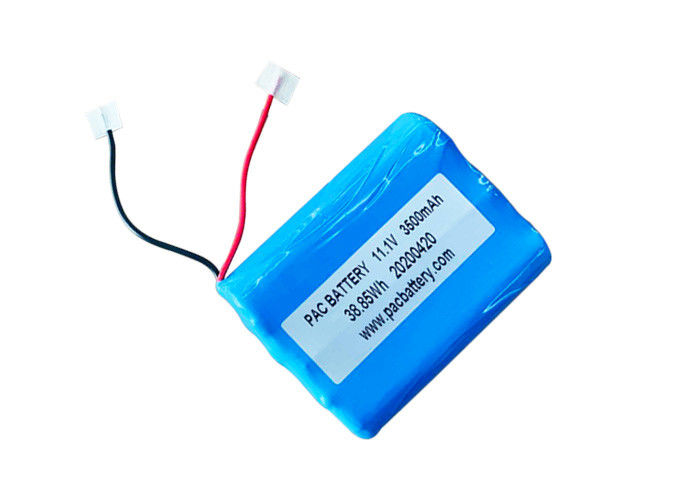

11.1v lithium ion battery 3500mAh 18650 flashlight 3s1p battery pack
1. Overview of 18650 battery pack 11.1v 3500mAh
2. Lithium Battery Pack Operation Instruction
3. Specification of 18650 flashlight 3s1p battery pack:
NO. | Item | Specifications | |
2.1 | Typical Capacity | 2500mAh @ 0.2C Discharge (0.2C) | |
2.2 | Nominal voltage | 11.1V | |
2.3 | Charge | Max input voltage | 26V±0.05 |
Max Charge voltage | 12.6V±0.05 | ||
Standard charge current | 700mA | ||
Max Charge current | 3500mA | ||
2.4 | Discharge | Min Discharge voltage | 8.1±0.08V (PCB End-of-charge Voltage) |
Fast Discharge current | 3500mA | ||
Max continuous discharge current | 4000mA | ||
2.5 | Initial Impedance | Max: 250mW | |
2.6 | Weight | Approx:150g±2 | |
2.7 | Operating temperature | Charging: 0℃~45℃ | |
Discharging:-20℃~60℃ | |||
2.8 | Storage temperature | -5℃~35℃ | |
2.9 | Storage Humidity | ≤75% RH | |
3.1 | Appearance | Without scratch, distortion, contamination and leakage | |
3.11 | Standard environmental condition | Temperature: 25±2℃ | |
Humidity: 45-75%RH | |||
Atmospheric Pressure: 86-106 KPA |
We could make customized 11.1V 18650 li ion battery, 18650 lithium rechargeable battery based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..Note: If above specification can't satisfy you, please contact us for your detailed requirement.
4. Initial dimension of 18650-3s li ion battery pack: max. 73*55.5*19mm
5. Protective circuits of 11.1v 3500mAh battery pack
6. Why Choose us?
Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.
